Both captures below are real iTerm2 sessions running the demo — the same binary renders at pixel resolution where the terminal speaks the kitty graphics protocol, and as ASCII cells everywhere else.
kitty graphics — donut-gfx
A parametric torus is rotated on two axes, perspective-projected, and lit per surface point; a z-buffer keeps the near face in front while each point splats a shaded disc tinted by a palette, with specular highlights toward white.
donut — kitty pixel mode

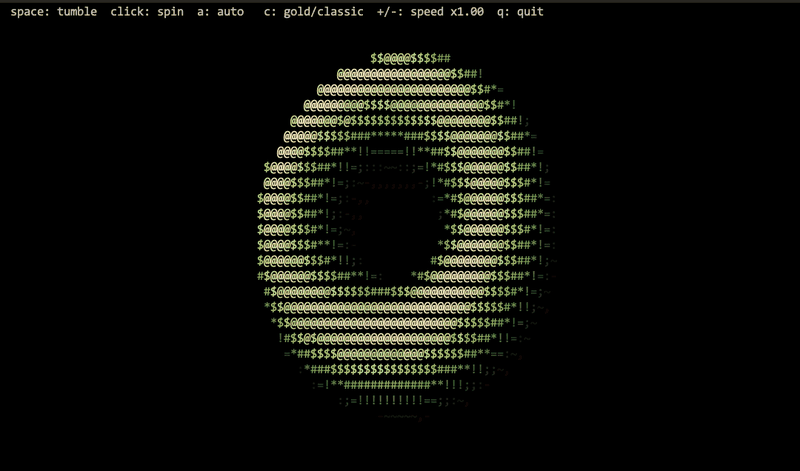

ASCII cells — donut
Andy Sloane's ASCII donut — the same maths z-buffered onto the cell grid through the .,-~:;=!*#$@ luminance ramp, here coloured by the palette. c cycles palettes and tube shapes.
donut — ASCII cell mode
Controls
Key
Action
space
tumble
mouse click
spin toward the pointer
a
toggle autopilot
c
cycle palette / shape
+ / -
spin speed
q / Esc
quit
Tuning env vars use the DONUT_* prefix — e.g. DONUT_MAXDIM=1024 for sharper frames, DONUT_CELLS=1 to force cell rendering even on kitty terminals. See the overview for the full tuning table.
